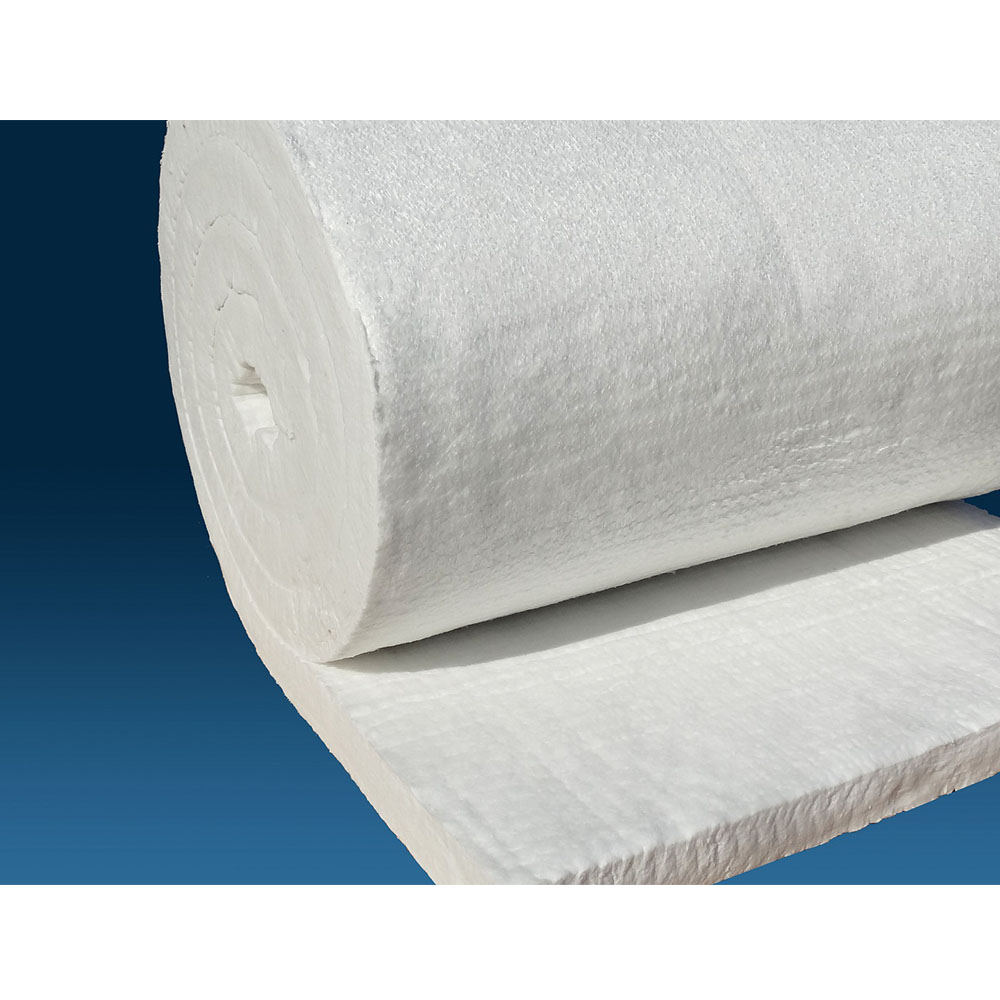

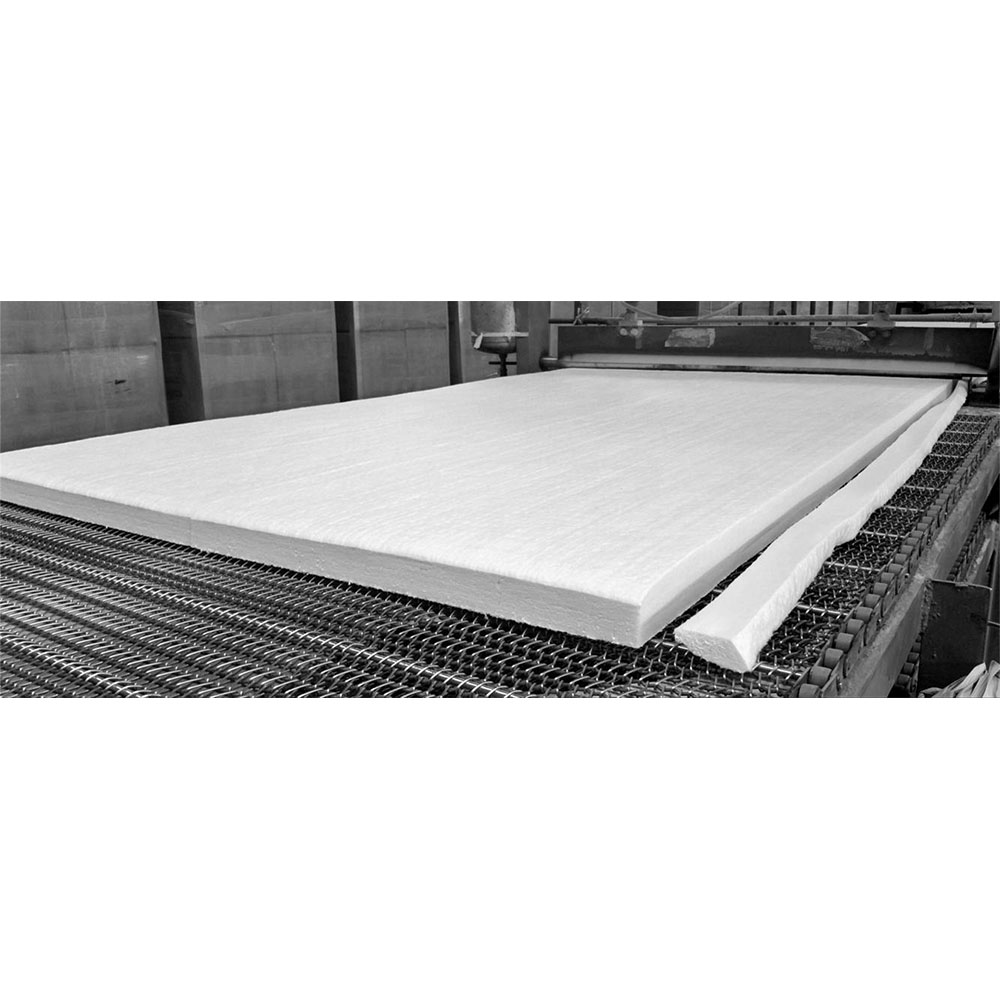

Ceramic Fiber Blanket

Minimum order quantity: According to customer requirements
Supply capability: According to customer requirements
Delivery deadline: (10-20 days for shipment)
Conventional packaging: inner plastic bag and outer cardboard box

Categories:

Contact Now

Description of Ceramic Fiber Blanket:

Fiber blankets are made of long, flexible, interwoven fibers that are made by “blowing” and “spinning” processes.Refractory ceramic fiber blanket has the heat resistance of hard refractory material, and the insulation value is five times higher.

Advantages of ceramic fiber blanket:

①High temperature resistance, the maximum use temperature can reach 1300℃;
②Low thermal conductivity, good thermal insulation performance. Under the same conditions, the thermal conductivity of aluminum silicate products is more than 30% lower than other insulation materials;
③Light weight and good stability, with soft, light and elastic characteristics, dry products 80 ~ 100 kg/ m³, wet products 100 ~ 130 kg/ m³;
④Not moistened to molten metals. It has good chemical stability;
⑤Sound absorption and sound insulation performance is good, with good sound reduction and sound insulation effect;
⑥Good electrical insulation, high dielectric constant, Can be used as high frequency insulation material.

Ceramic fiber blanket uses:

  • Commercial cooking equipment
  • Self-cleaning oven
  • Expansion joint
  • Precast grease line
  • Stack liner
  • Smoke and fire valve
Product Category Ordinary Standard High Purity High Aluminum Zirconium
Operating Temperature(℃) 1100 1260 1260 1360 1360
Standard Temperature(℃) <1000 1050 1100 1200 1200
B.D(kg/m³) 96/128 96/128 96/128 128/160 128/160
Heat Conductivity Coefficient (w/m.k) -4(1000℃) -3(1000℃) -3(1100℃) -3(1250℃) -3(1250℃)
PERMANENT liner change %

24Hours under,B.D320kg/m³

0.09(400℃)

0.176(800℃)

0.09(400℃)

0.176(800℃)

0.09(400℃)

0.176(800℃)

0.132(600℃)

0.22(1000℃)

0.132(600℃)

0.22(1000℃)

Strength Extension (Mpa) 0.08-0.12
Chemical Composition(%)
AL2O3 42-44 45-46 47-49 52-55 45-46
AL2O3 +SIO2 96 97 99 99
AL2O3 +SIO2+ZrO2 99
ZrO2 5-7
Fe2O3 <1.2 <1.0 0.2 0.2 0.2
NaO+K22O ≦0.5 ≦0.5 0.2 0.2 0.2
Product Size (mm) according to customer requirements
